Voyager Star / VOYAGER STAR MSC ELP P WH
96638108
▼ Datasheet

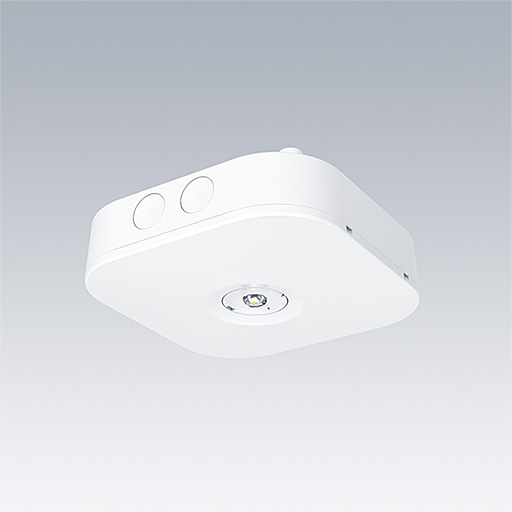

LED safety luminaire for surface ceiling mounting. Optics rotatable and fixable in 45° steps.
Supplied with a set of changeable optics ESC (escape route), ANT (antipanic) and HC (high ceiling).
Housing made of polycarbonate (PC) white.
Quick fit terminal block, through wiring possible up to 2,5 mm².
Luminaire for nBox emergency system with Powerline communication.
Maintained or non-maintained operation selectable via connected system.
Centralized monitoring via connected nBox emergency system.
Luminaire input power emergency mode: 3,6W, power factor 1
Luminaire input power maintained: 3,6W, power factor 1; Luminaire input power non-maintained: <0,3W
Vin: 220-240V AC +/-10%, or 38.4-50.4V DC Degree of protection: IP42
Ta=0°C to +40°C Impact strength: IK04
Weight: 0.41 kg Class II electrical
Spare Parts:
59013938 VOYAGER STAR ELP CONVERTER
59013940 VOYAGER STAR LENSES SET ANT/ESC/SPOT WH
- LED
- CE
- IK04
- IP42
- SC2
