Voyager Star / VOYAGER STAR MSC ECC WH
96638109
▼ Datasheet

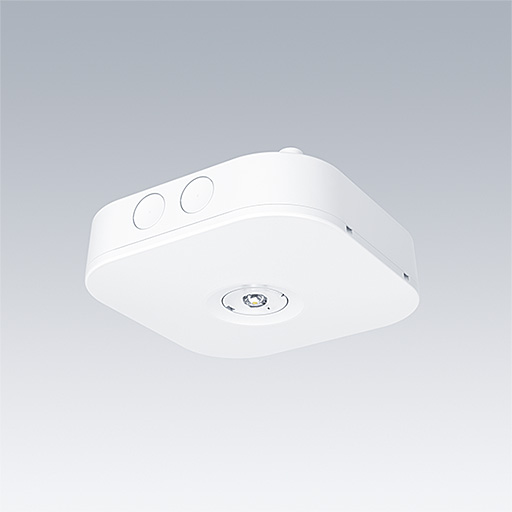

LED safety luminaire for surface ceiling mounting. Optics rotatable and fixable in 45° steps.
Supplied with a set of changeable optics ESC (escape route), ANT (antipanic) and HC (high ceiling).
Housing made of polycarbonate (PC) white.
Quick fit terminal block, through wiring possible up to 2,5 mm².
Luminaire for central battery emergency systems with monitored power lines.
Maintained operation only.
Centralized monitoring via connected emergency system.
Luminaire input power emergency mode: 2W, power factor 1
Luminaire input power maintained: 2W, power factor 0,53
Vin: 220-240V AC +/-10%, or 176-276V DC Degree of protection: IP42
Ta=0°C to +40°C Impact strength: IK04
Weight: 0.41 kg Class II electrical
Spare Parts:
59013939 VOYAGER STAR ECC CONVERTER
59013940 VOYAGER STAR LENSES SET ANT/ESC/SPOT WH
- LED
- CE
- IK04
- IP42
- SC2
