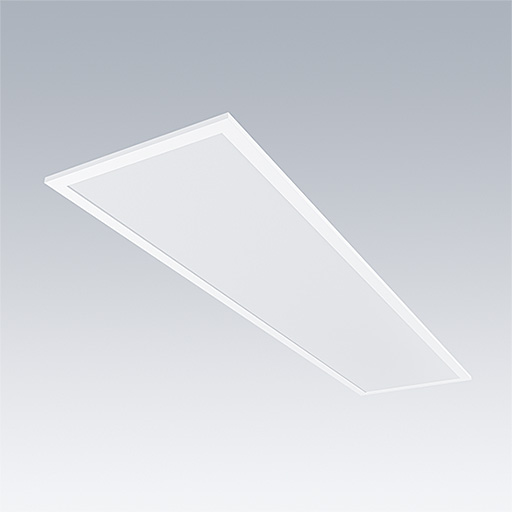

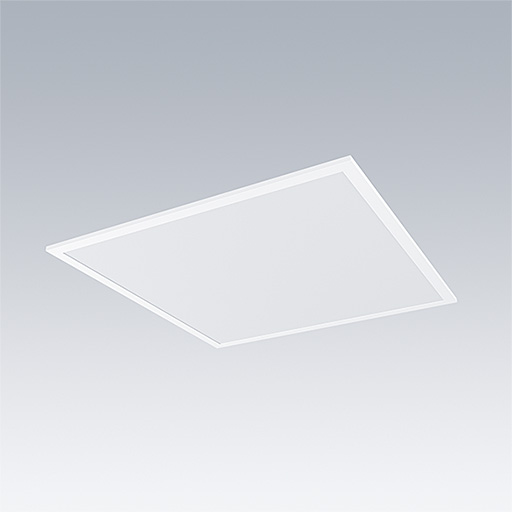

Beta Force
Una soluzione flessibile, efficiente e duratura per le applicazioni che richiedono un livello superiore di protezione IP
- Available in square and rectangular sizes suitable for recessed modular ceilings and when combined with the required mounting accessory can be installed in plasterboard ceilings.
- La temperatura di colore correlata (CCT) si regola con selettore a 3000K, 3500K o 4000K
- Facile da installare grazie ai connettori di cablaggio twist and lock sul driver LED
- Beta Force è adatto a installazioni in interni che richiedono un grado di protezione aumentato (IP65), come docce e spogliatoi, corridoi di ospedali, aree di cucina e simili
Materiali
Frame: White sheet steel
Diffuser: Opal polycarbonate TP(a) rated
Installazione e Montaggio
Suitable for recessed lay in grid ceilings as standard and with required accessory to allow installation in plasterboard ceilings.
Specifiche
To specify state:
An efficient, recessed luminaire with LED light source . IP65 from below and IK08. 3000K, 3500K and 4000K CCT adjustable via a switch. CRI 80 or CRI 90 and a lifetime of 100,000 hours @ L80 Ta 25°C, including high efficiency up to 145lm/W, UGR<19 (3500lm,4100lm) UGR<22 (6000lm), TP(a) rated.
As Thorn BETA FORCE
- New Product
New Product
LumExpress Product
eControl Product
▼ Beta Force
| Descrizione | Type | Peso (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BETA FORCE 3500-80 CSW OP HF 3X12 | LED | 2.29 | 96638044 | ||||||
| BETA FORCE 3500-80 CSW OP HF Q600 | LED | 2.26 | 96638041 | ||||||
| BETA FORCE 4100-80 CSW OP HF 3X12 | LED | 2.29 | 96638045 | ||||||
| BETA FORCE 4100-80 CSW OP HF Q600 | LED | 2.26 | 96638042 | ||||||
| BETA FORCE 4100-80 CSW OP HF Q625 | LED | 2.40 | 96638048 | ||||||
| BETA FORCE 4100-90 CSW OP HF 3X12 | LED | 2.29 | 96638051 | ||||||
| BETA FORCE 4100-90 CSW OP HF Q600 | LED | 2.26 | 96638050 | ||||||
| BETA FORCE 6000-80 CSW OP HF 3X12 | LED | 2.29 | 96638046 | ||||||
| BETA FORCE 6000-80 CSW OP HF Q600 | LED | 2.26 | 96638043 |
▼ Beta Force Dimmable
| Descrizione | Type | Peso (kg) | SAP Code | ||||||
|---|---|---|---|---|---|---|---|---|---|
| BETA FORCE 3500-80 CSW OP HFIX 3X12 | LED | 2.32 | 96638055 | ||||||
| BETA FORCE 3500-80 CSW OP HFIX Q600 | LED | 2.29 | 96638052 | ||||||
| BETA FORCE 4100-80 CSW OP HFIX 3X12 | LED | 2.32 | 96638056 | ||||||
| BETA FORCE 4100-80 CSW OP HFIX Q600 | LED | 2.29 | 96638053 | ||||||
| BETA FORCE 4100-90 CSW OP HFIX 3X12 | LED | 2.32 | 96638059 | ||||||
| BETA FORCE 4100-90 CSW OP HFIX Q600 | LED | 2.29 | 96638058 | ||||||
| BETA FORCE 6000-80 CSW OP HFIX 3X12 | LED | 2.32 | 96638057 | ||||||
| BETA FORCE 6000-80 CSW OP HFIX Q600 | LED | 2.29 | 96638054 |
